Version 10 Pipe Cutting Support for Rectangular Pipe-Add-on to Round Pipe CAD/CAM

PN: FCS-10-PIPE-RECT
+Quote
  • Rectangular and square, tube and pipe support.
  • Pipe shape wizard makes perfect cuts for mating pipes of any diameter with a multitude of joints at any angle and any size including T joints, end caps, miter joints, Y joints and through pipes.
  • Pipe sizing wizard automatically sets OD, and thickness of standard pipe sizes.
  • 3D solid model of pipe joints includes disassembly to preview what both sides of the joint will look like.

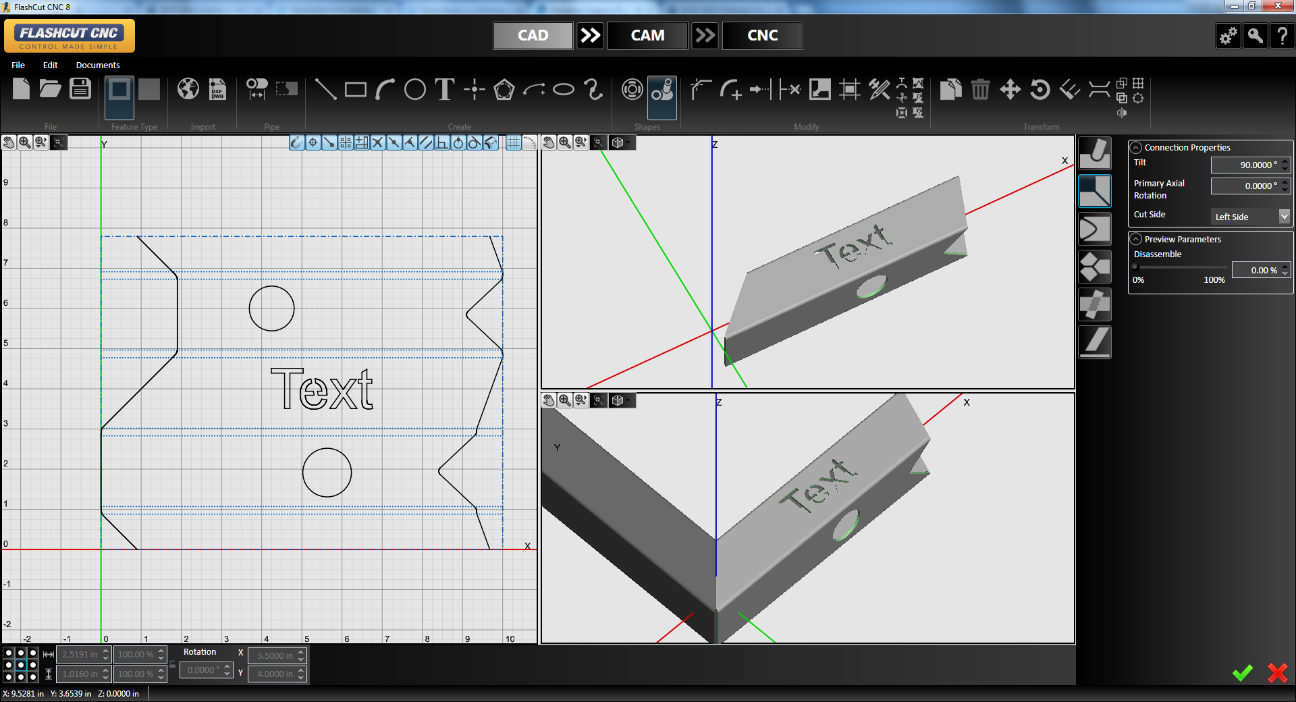

  • Flattened view allows for easy design of custom patters of any shape including slots and text.
  • “Ghost 2D views” show feature wrapping with no interruption.
  • Fully rotatable solid model view.
