Sub-Panel Microstepping

Overview

Pro Microstepping Sub-Panel

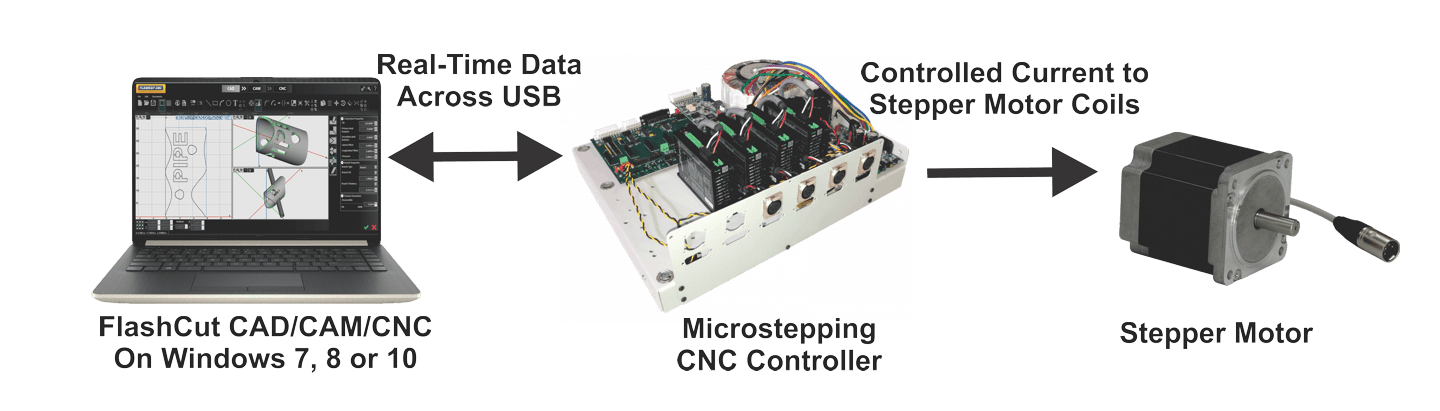

The FlashCut CNC Pro Microstepping Sub-Panel has the same components as the Pro-Series Microstepping Controller, without the chassis.  It is perfect for upgrading or adding professional grade CNC controls to an existing controls cabinet.  The FlashCut CNC Multi-Axis Pro Series CNC Microstepping Controller provides precise, powerful coordinated motion for controlling any machine, large or small. It was elegantly engineered and built in the USA maintaining high quality and smooth power.

Its 8A drives with anti-resonance technology and 70VDC power supply are perfect for any CNC applications such as a plasma, waterjet, oxyfuel, laser, router, lathe and Bridgeport machines that need excellent smoothness and precision power.  It can be used with any size stepper motor including NEMA 17, 23, 34, 42 and 56.  It is also available in Digital Servo for the even more smoothness, speed and power.Each Compact and Pro-Series Stepper Controller comes in a sturdy aluminum chassis with an integrated USB Signal Generator, microstepping drives and a universal 110-240VAC power supply.  All controllers include the acclaimed FlashCut CNC Windows Software giving you the ultimate in ease of use, power and flexibility.  We support everything we sell via phone or e-mail.

Featured Applications

Features

  • Compatible with all types of Stepper Motors
  • Current adjustable in all models
  • Available in 2, 3, 4, 5 and 6 axis models for up to 5 axes of simultaneous interpolated movement and one slave axis.
  • Pro Microstepping Sub-Panel
    • Up to 8A of high performance Microstepping Control
    • User settable Microstep levels for smooth, accurate motion
    • Automatic current reduction when motors are at rest
    • Utilizes bipolar chopper technology for top efficiency
    • Anti-resonance technology and inertia matching for the ultimate in smooth microstepping control

Components

  • FlashCut CNC Software
  • Open-frame sub-panel includes:
    • USB Signal Generator Card
    • Stepper Drive Modules
    • Integrated  70 VDC Power supply
    • Motor power and signal plugs
    • Accepts input power of 110-220 VAC, 50 and 60Hz
  • All required cables
  • Free technical support
Specs
Product8 Amp Pro-Series Microstepping CNC Sub-Panel
Phase Current Range [A]1.0 - 8.0
Bus Voltage [VDC]70
Step ResolutionFull, 1/2, 1/10, 1/25, 1/64, 1/100, *Includes a smooth step option
Idle Current Reduction0.5
Input Voltage110 or 220
General Purpose Digital Output Lines8 Digital (Expandable to 32 Digital, 2 Analog and 1 PWM)
General Purpose Digital In Lines8 Digital (Expandable to 32 Digital, 2 Analog)
Weight [lbs] (kg)14.4 (6.54)
L x W x H [in] (mm)13.4 x 15.5 x 7.4
(339.5 x 392.6 x 188)
Manual View
Controllers
Part Number
Part Name
Description
+Quote

2 Axis, 8 Amp Pro-Series Microstepping CNC Sub-Panel

2 Axis Microstepping CNC Sub Panel -All of the components of a Pro-Series that Installs in...
+Quote

3 Axis, 8 Amp Pro-Series Microstepping CNC Sub-Panel

3 Axis Microstepping CNC Sub Panel -All of the components of a Pro-Series that Installs in...
+Quote

4 Axis, 8 Amp Pro-Series Microstepping CNC Sub-Panel

4 Axis Microstepping CNC Sub Panel -All of the components of a Pro-Series that Installs in...
+Quote

5 Axis, 8 Amp Pro-Series Microstepping CNC Sub-Panel

5 Axis Microstepping CNC Sub Panel -All of the components of a Pro-Series that Installs in...
+Quote

6 Axis, 8 Amp Pro-Series Microstepping CNC Sub-Panel

6 Axis Microstepping CNC Sub Panel -All of the components of a Pro-Series that Installs in...
Motors
Part Number
Part Name
Description
+Quote

NEMA 17, 62 oz-in Stepper Motor

NEMA 17 High Torque Stepper Motor, Holding Torque, 62 oz-in. 0.25" shaft, Mini Fit Jr. Con...
+Quote

NEMA 23, 155 oz-in Stepper Motor

NEMA 23 High Torque Double Shaft Stepper Motor, Holding Torque , 155 oz-in, 0.25" shaft, M...
+Quote

NEMA 23, 320 oz-in Stepper Motor

NEMA 23 High Torque Stepper Motor, Holding Torque, 269 oz-in, XLR connector...
+Quote

NEMA 23, 454 oz-in Stepper Motor

NEMA 23 High Torque Stepper Motor, Holding Torque ,454 oz-in, XLR connector...
+Quote

NEMA 23, 2 Shaft, 454 oz-in Stepper Motor

NEMA 23 High Torque Double Shaft Stepper Motor, Holding Torque ,454 oz-in, XLR connector...
+Quote

NEMA 34, 940 oz-in Stepper Motor

NEMA 34 High Torque Stepper Motor, Holding Torque , 940 oz-in, XLR connector...
+Quote

NEMA 34, 1316 oz-in Stepper Motor

NEMA 34 High Torque Stepper Motor, Holding Torque, 1161 oz-in, XLR connector...
+Quote

NEMA 42, 2830 oz-in Stepper Motor

NEMA 42 High Torque Stepper Motor, Holding Torque, 2830 oz-in, XLR connector...
Cables
Part Number
Part Name
Description
+Quote

10' Stepper Motor Cable -18 AWG XLR-XLR

10' Stepper Motor Cable with 18 AWG cable with two XLR connectors....
+Quote

15' Stepper Motor Cable -18 AWG XLR-XLR

15' Stepper Motor Cable with 18 AWG cable with two XLR connectors....
+Quote

20' Stepper Motor Cable -18 AWG XLR-XLR

20' Stepper Motor Cable with 18 AWG cable with two XLR connectors....
+Quote

22' Stepper Motor Cable -18 AWG XLR-XLR

22' Stepper Motor Cable with 18 AWG cable with two XLR connectors....
+Quote

25' Stepper Motor Cable -18 AWG XLR-XLR

25' Stepper Motor Cable with 18 AWG cable with two XLR connectors....
+Quote

35' Stepper Motor Cable -18 AWG XLR-XLR

35' Stepper Motor Cable with 18 AWG cable with two XLR connectors....
+Quote

50' Stepper Motor Cable -18 AWG XLR-XLR

50' Stepper Motor Cable with 18 AWG cable with two XLR connectors....
+Quote

30' Stepper Motor Cable -18 AWG XLR-XLR

30' Stepper Motor Cable with 18 AWG cable with two XLR connectors....
Accessories
Part Number
Part Name
Description
+Quote

Joystick Plus Pendant Board (A-la-carte feature)

8 position joystick for jogging in the XY plane including 45 degree angles....
+Quote

NEMA 23 Brake

Reliable braking device that is designed to specifically interface with our NEMA 23 motors...
+Quote

Additional Axis Upgrade Kit for 8 amp Pro-Series Microstepping - XLR

Additional axis drive kit for 8 A Pro-Series Microstepping includes drive and internal cab...
+Quote

I/O Connector Kit for Classic I/O Expansion Board

...
+Quote

NEMA 34 Brake

Reliable braking device that is designed to specifically interface with our NEMA 34 motors...
+Quote

8 amp Microstepping Replacement Drive Board

8 amp Microstepping Replacement Drive Board for the Pro-Series Microstepping CNC Controlle...
+Quote

XLR Stepper Motor Connector Kit

XLR Stepper Motor Connector Kit for 3 axes, includes ( 3) Male XLR Connectors...
+Quote

Programmable Pendant Board (A-la-carte feature)

Programmable matrix board that allows you to add up to 144 physical switches to your contr...
Gearboxes
Part Number
Part Name
Description
+Quote

NEMA 34 - Ratio 5:1

Straight 5:1 gearbox with NEMA 34 flange on both sides, 0.5" dia. input and 0.5" dia. outp...
+Quote

NEMA 34 - Ratio 10:1

Straight 10:1 gearbox with NEMA 34 flange on both sides, 0.5" dia input and 0.5" dia. out...
+Quote

NEMA 34 - Ratio 25:1

Straight 25:1 gearbox with NEMA 34 flange on both sides, 0.5" dia. input and 0.5" dia. out...
+Quote

NEMA 34 - Ratio 40:1

Straight 40:1 gearbox with NEMA 34 flange on both sides, 0.5" dia. input and 0.5" dia. out...
