Sub-Panel Servo CNC Controller

Overview

Pro Servo Sub-Panel

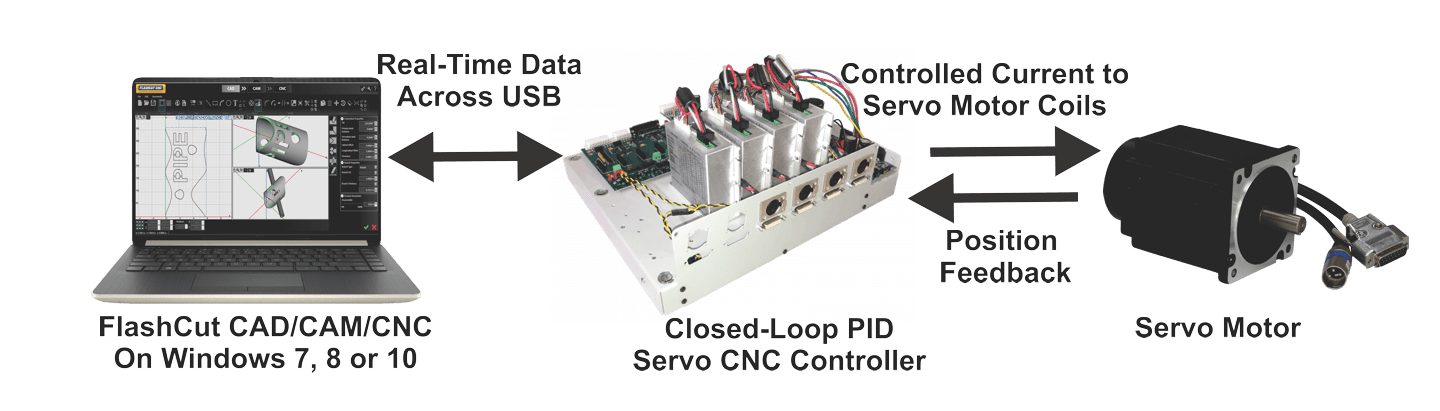

The FlashCut CNC Pro Servo Sub-Panel has the same components as the Pro-Series Servo, without the chassis.  It is perfect for upgrading or adding professional grade CNC controls to an existing controls cabinet.  It features FlashCut CNC Software and integrated USB Signal Generator, drives any machine tool with power, smoothness and precision. State-of-the-art, closed-loop digital PID control provides accurate positioning even under the most strenuous conditions. Whether you have a plasmawaterjetlaserrouterlatheBridgeport mill or any sized cutting machine, our servo drive systems have the right power to suit your needs. Our Pro Servo Sub-Panel also works great for general automation tasks.

Call or build a quote in the Quote Builder above to discuss your needs and receive pricing.

Features

  • Made to place into your own custom cabinet or chassis
  • 25A digital sinusoidal or trapezoidal PID servo
  • Up to 6 axes of CNC Control (5 axes simultaneous and 1 slave)
  • 80VDC Power Supply
  • FlashCut CNC Software and Documentation
  • Optional Integrated Stingray® plasma torch height control follows the sheet surface at the precise height
  • Made in the USA
Controllers
Part Number
Part Name
Description
+Quote

2-Axis, 25 Amp Pro-Series Servo CNC Sub Panel

2 Axis Servo CNC Sub Panel -All of the components of a Pro-Series Servo that Installs in a...
+Quote

3-Axis, 25 Amp Pro-Series Servo CNC Sub Panel

3 Axis Servo CNC Sub Panel -All of the components of a Pro-Series Servo that Installs in a...
+Quote

4-Axis, 25 Amp Pro-Series Servo CNC Sub Panel

4 Axis Servo CNC Sub Panel -All of the components of a Pro-Series Servo that Installs in a...
+Quote

5-Axis, 25 Amp Pro-Series Servo CNC Sub Panel

5 Axis Servo CNC Sub Panel -All of the components of a Pro-Series Servo that Installs in a...
+Quote

6-Axis, 25 Amp Pro-Series Servo CNC Sub Panel

6 Axis Servo CNC Sub Panel -All of the components of a Pro-Series Servo that Installs in a...
Motors
Part Number
Part Name
Description
+Quote

NEMA 23, 191 oz-in Brushless Servo Motor

NEMA 23, 191 oz-in Peak, 64 oz-in Continuous Torque, Brushless Servo Motor...
+Quote

NEMA 34, 552 oz-in Brushless Servo Motor

NEMA 34, 552 oz-in Peak, 184 oz-in Continuous Torque, Brushless Servo Motor...
+Quote

NEMA 34, 1062 oz-in Brushless Servo Motor

NEMA 34, 1062 oz-in Peak, 354 oz-in Continuous Torque, 780W Brushless Servo Motor...
+Quote

NEMA 42, 2549 oz-in Brushless Servo Motor

NEMA 42, 2549 oz-in Peak, 850 oz-in Continuous Torque, Brushless Servo Motor...
Cables
Part Number
Part Name
Description
+Quote

10' Servo Motor Cable 18 AWG XLR power cable and DB15 feedback cable pair

10' Servo Motor Cable Pair with 18 AWG, shielded, XLR power cable and DB15 feedback cable....
+Quote

25' Servo Motor Cable 18 AWG XLR power cable and DB15 feedback cable pair

25' Servo Motor Cable Pair with 18 AWG, shielded, XLR power cable and DB15 feedback cable....
+Quote

35' Servo Motor Cable 18 AWG XLR power cable and DB15 feedback cable pair

35' Servo Motor Cable Pair with 18 AWG, shielded, XLR power cable and DB15 feedback cable....
+Quote

50' Servo Motor Cable 18 AWG XLR power cable and DB15 feedback cable pair

50' Servo Motor Cable Pair with 18 AWG, shielded, XLR power cable and DB15 feedback cable....
Accessories
Part Number
Part Name
Description
+Quote

Digital & Analog I/O Expansion Board for USB Signal Generator

Adds 24 inputs, 24 outputs, analog ins and outs to Signal Generator and Pro Series Control...
+Quote

Mini IO Expansion Board

Easily adds 1 analog, 1 PWM & 2 relay outputs, 1 analog & 1 quadrature encoder or ...
+Quote

Control Pendant with Joystick

24-function and 8-direction joystick pendant with programmable functions such as jogging a...
+Quote

8 Channel Relay Box

8 Channel Relay Board with cable for connection to Signal Generator Board...
+Quote

Universal Relay Box

Convenient metal enclosure with 2 switched 110-240 VAC relays and 2 contact relays...
+Quote

15' 5 Pair Limit Switch Cable

10' cable harness for 5 input lines. Switches not included....
+Quote

25' 5 Pair Limit switch cable

Plugs directly into input port of FlashCut CNC Controller for easy connection to most inpu...
+Quote

35' 6 Pair Limit switch cable

Plugs directly into input port of FlashCut CNC Controller for easy connection to most inpu...
+Quote

Programmable Pendant Board (A-la-carte feature)

Programmable matrix board that allows you to add up to 144 physical switches to your contr...
+Quote

Joystick Plus Pendant Board (A-la-carte feature)

8 position joystick for jogging in the XY plane including 45 degree angles....
+Quote

12 Amp Continuous, 25 Amp Peak Replacement Servo Drive Module

12A Continuous, 25A Peak Replacement Servo Drive Module for the Pro-Series Servo CNC Contr...
+Quote

I/O Connector Kit for Classic I/O Expansion Board

...
+Quote

Additional axis connector kit for 12-25 amp Pro-Series Servo

Drive / cable kit for 12-25 A Pro-Series Servo incl. servo drive and internal cables to ad...
+Quote

Servo Motor Connector Kit

Servo Motor Connector Kit (Power and Signal Connector for single axis) Includes 3 Pin XLR ...
+Quote

I/O Connector Kit for Mini I/O Expansion Board

I/O Connector Kit for Mini I/O Expansion Board includes 18 pin MFJ connector and contacts...
+Quote

(5) industrial switches

Set of 5 industrial switches for rugged limit or home input lines. ...
+Quote

(5) Miniature Switches

Set of 5 miniature switches for general limit or home input lines....
