5A Compact CNC

Overview

5A Compact CNC Controller

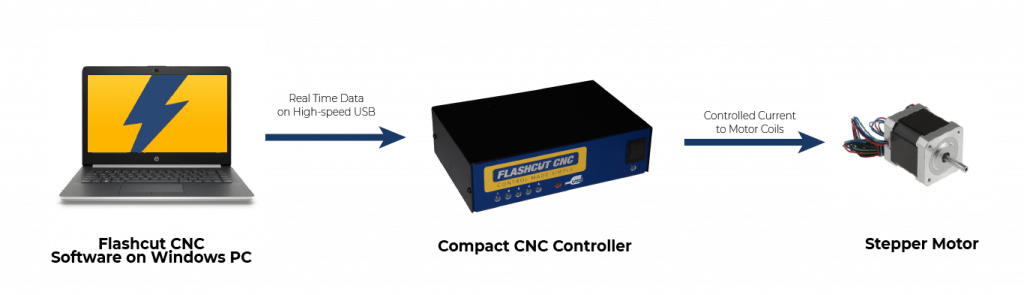

The FlashCut CNC Compact CNC Controller provides affordable, precision motion for controlling any small multi-axis machine. It was elegantly engineered and built in the USA maintaining high quality and affordability.  Its compact 5A Microstepping drives are perfect for smaller CNC machines, lab automation and general control of NEMA size 17 and 23 motors.

Each Compact and Pro-Series Stepper Controller comes in a sturdy aluminum chassis with an integrated USB Signal Generator, microstepping drives and a universal 110-240VAC power supply.  All controllers include the acclaimed FlashCut CNC Windows Software giving you the ultimate in ease of use, power and flexibility.  We support everything we sell via phone or e-mail.

Featured Applications

Features

  • Compatible with all types of Stepper Motors
  • Current adjustable in all models
  • Available in 2, 3, 4, and 5 axis models for up to 5 axes of simultaneous interpolated movement.
  • Compact CNC Controller
    • Up to 5A of Micro-stepping Control
    • Automatic current reduction when motors are at rest
    • Utilizes Bipolar chopper technology for top efficiency

Components

  • FlashCut CNC Software
  • Integrated Controller and Stepper Drive Box (2, 3, 4 or 5 axis) including:
    • USB Signal Generator Card
    • Stepper Drive Modules
    • 42 VDC Power supply
    • Motor power and signal plugs
    • Accepts input power of 110-220 VAC, 50 and 60Hz
  • All required cables
  • Free technical support
Specs
ProductCompact CNC Controller - 5A
Phase Current Range [A]0.5 - 5
Bus Voltage [VDC]42
Step ResolutionFull,1/2, 1/4, 1/16, 1/32, 1/64, 1/128, 1/256
Idle Current Reduction50%
Input Voltage110 or 220
General Purpose Digital Output Lines8 Digital (Expandable to 10 Digital, 1 Analog, 1 PWM)
General Purpose Digital In Lines8 Digital (Expandable 10 Digital, 1 Analog)
Weight [lbs] (kg)1.95 (0.9)
L x W x H [in] (mm)6 x 9.1 x 2.7
(150 x 231 x 69)
Manual View
Controllers
Part Number
Part Name
Description
+Quote

5 Axis, 5 Amp Compact Microstepping CNC Controller

5 Amp Compact Microstepping CNC Controller, Completely Integrated w/ Drives and Signal Gen...
+Quote

4 Axis, 5 Amp Compact Microstepping CNC Controller

5 Amp Compact Microstepping CNC Controller, Completely Integrated w/ Drives and Signal Gen...
+Quote

3 Axis, 5 Amp Compact Microstepping CNC Controller

5 Amp Compact Microstepping CNC Controller, Completely Integrated w/ Drives and Signal Gen...
+Quote

2 Axis, 5 Amp Compact Microstepping CNC Controller

5 Amp Compact Microstepping CNC Controller, Completely Integrated w/ Drives and Signal Gen...
Motors
Part Number
Part Name
Description
+Quote

NEMA 23, 2 Shaft, 454 oz-in Stepper Motor

NEMA 23 High Torque Double Shaft Stepper Motor, Holding Torque ,454 oz-in, XLR connector...
+Quote

NEMA 23, 454 oz-in Stepper Motor

NEMA 23 High Torque Stepper Motor, Holding Torque ,454 oz-in, XLR connector...
+Quote

NEMA 23, 320 oz-in Stepper Motor

NEMA 23 High Torque Stepper Motor, Holding Torque, 269 oz-in, XLR connector...
+Quote

NEMA 23, 155 oz-in Stepper Motor

NEMA 23 High Torque Double Shaft Stepper Motor, Holding Torque , 155 oz-in, 0.25" shaft, M...
+Quote

NEMA 17, 62 oz-in Stepper Motor

NEMA 17 High Torque Stepper Motor, Holding Torque, 62 oz-in. 0.25" shaft, Mini Fit Jr. Con...
Cables
Part Number
Part Name
Description
+Quote

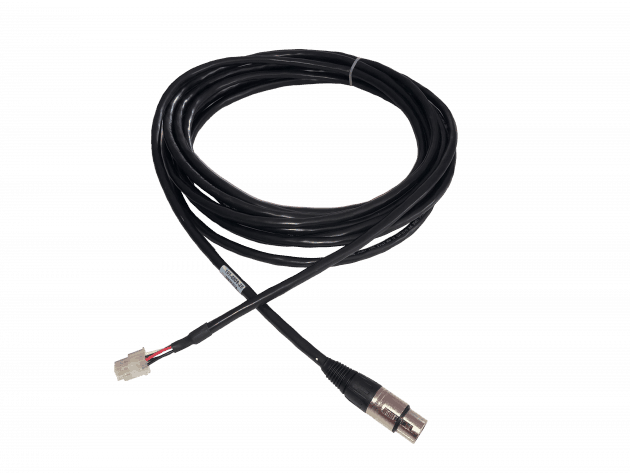

25' Stepper Motor Cable -18 AWG XLR-MFJ

25' Stepper Motor Cable with 18 AWG cable with one XLR connector and one Mini-Fit connecto...
+Quote

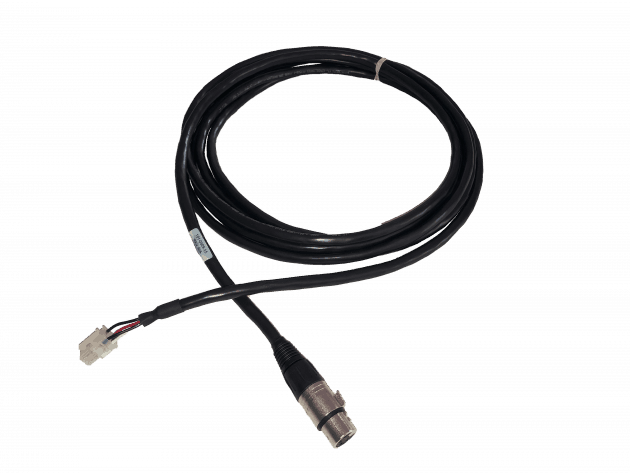

15' Stepper Motor Cable -18 AWG XLR-MFJ

15' Stepper Motor Cable with 18 AWG cable with one XLR connector and one Mini-Fit connecto...
+Quote

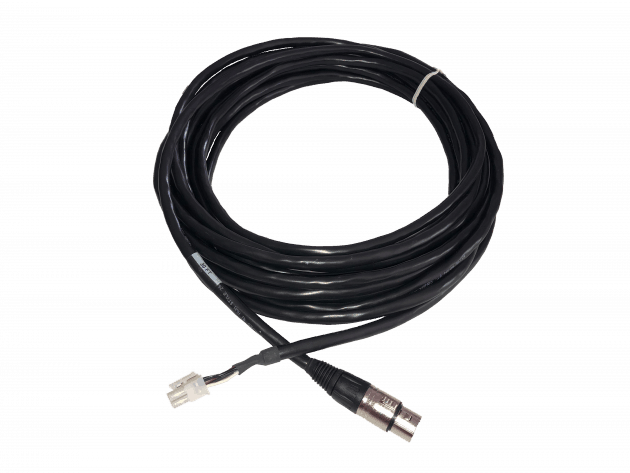

30' Stepper Motor Cable -18 AWG XLR-MFJ

30' Stepper Motor Cable with 18 AWG cable with one XLR connector and one Mini-Fit connecto...
+Quote

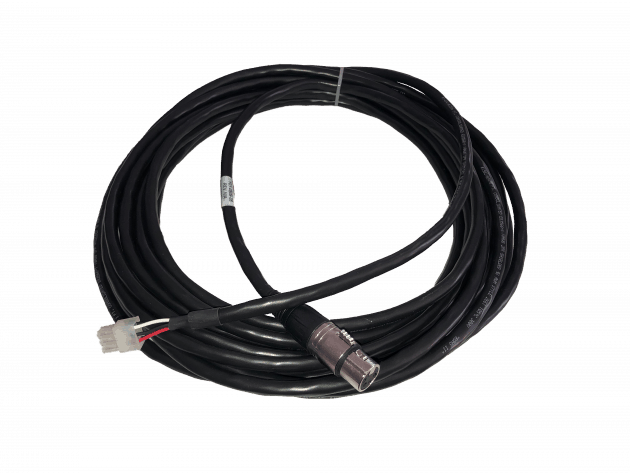

35' Stepper Motor Cable -18 AWG XLR-MFJ

35' Stepper Motor Cable with 18 AWG cable with one XLR connector and one Mini-Fit connecto...
Accessories
Part Number
Part Name
Description
+Quote

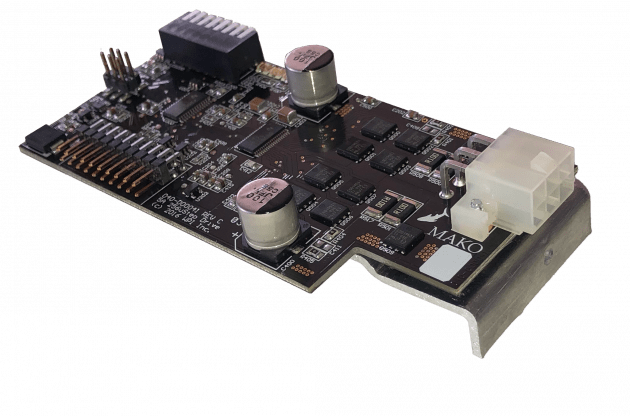

5 Amp Microstepping Replacement Drive Card

5 amp Microstepping Replacement Drive Card for the Compact Microsteppng CNC Controller...
+Quote

(5) Miniature Switches

Set of 5 miniature switches for general limit or home input lines....
+Quote

25' 5 Pair Limit switch cable

Plugs directly into input port of FlashCut CNC Controller for easy connection to most inpu...
+Quote

15' 5 Pair Limit Switch Cable

10' cable harness for 5 input lines. Switches not included....
+Quote

Universal Relay Box

Convenient metal enclosure with 2 switched 110-240 VAC relays and 2 contact relays...
+Quote

Control Pendant with Joystick

24-function and 8-direction joystick pendant with programmable functions such as jogging a...
+Quote

Mini IO Expansion Board

Easily adds 1 analog, 1 PWM & 2 relay outputs, 1 analog & 1 quadrature encoder or ...
+Quote

I/O Connector Kit for Mini I/O Expansion Board

I/O Connector Kit for Mini I/O Expansion Board includes 18 pin MFJ connector and contacts...
+Quote

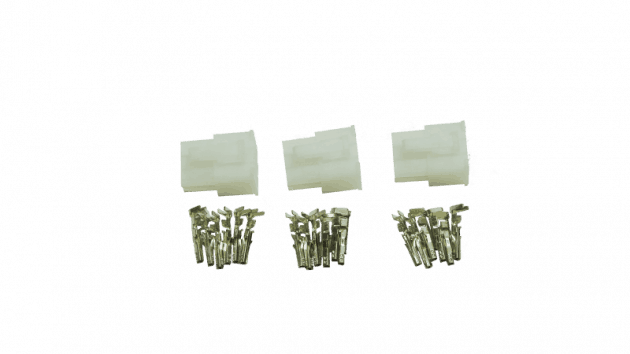

Motor Connector Kit for Mini Fit Jr.

Motor Connector Kit for Minifit Jr. Includes (3) 6 Pin Mini Fit Jr. Connectors and contact...
+Quote

NEMA 23 Brake

Reliable braking device that is designed to specifically interface with our NEMA 23 motors...
