Titanium Microstepping

Overview

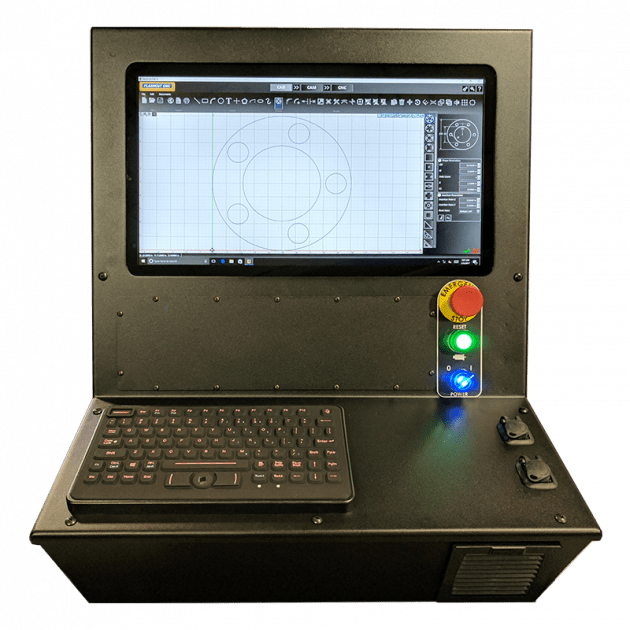

Titanium Microstepping CNC Console

The FlashCut CNC Titanium Microstepping CNC Console is a rugged CNC controller integrated with a powerful industrial PC. Its sealed, steel construction makes it perfect for a noisey and dusty industrial environment. Like all of our controls, it features the FlashCut CNC Software and integrated USB Signal Generator and drives any machine tool with power, smoothness and precision. Advanced digital microstepping drives with anti-resonance and intertia matching technology provide accurate and rugged positioning even under the most strenuous conditions. Whether you have a CNC plasma, Bridgeport mill, full sized router or any sized cutting tool, the Titanium Microstepping Control Console has the right power to suit your needs.

Featured Applications

Features

  • All-in-one ergonomic industrial CNC control console with sealed steel construction
  • Digital 8A Microstepper with advanced anti-resonance and inertial matching technology for up to 5 Axes of motion control
  • Integrated 19.5″ industrial touch screen with integrated Intel Core I3 PC
  • Pedestal mounting with bottom access to all connections reducing exposed cabling on machine
  • Hinged top access for easy maintenance
  • Configurable for over 10 external control switches including E-Stop, Cycle Start, Feed Hold, Jogging Joy Stick, File Load, Output Line Control
  • Optional Integrated Stingray® plasma torch height control follows the sheet surface at the precise height
  • Made in the USA
Specs
ProductTitanium Microstepping CNC Console
Phase Current Range [A]1.0 - 8.0
Bus Voltage [VDC]70
Step ResolutionFull*, 1/2*, 1/10, 1/25, 1/64, 1/100 *Includes a smooth step option
Idle Current Reduction50%
Input Voltage110 or 220
General Purpose Digital Output Lines8 Digital (Expandable to 32 Digital, 2 Analog, 2 PWM)
General Purpose Digital In Lines8 Digital (Expandable to 32 Digital, 2 Analog)
Weight [lbs] (kg)75 (34)

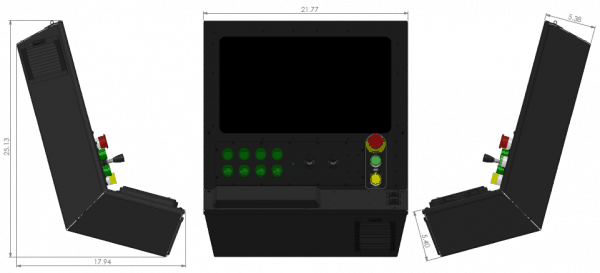

L x W x H [in] (mm)18 x 21.8 x 25.1
(457 x 554 x 638)
Manual View
Controllers
Part Number
Part Name
Description
+Quote

Titanium CNC Console - 2 Axis Microstepper

All-in-one industrial CNC control console w/ PC, 19.5" touch screen and 8 A microstepping ...
+Quote

Titanium CNC Console - 3 Axis Microstepper

All-in-one industrial CNC control console w/ PC, 19.5" touch screen and 8 A microstepping ...
+Quote

Titanium CNC Console - 4 Axis Microstepper

All-in-one industrial CNC control console w/ PC, 19.5" touch screen and 8 A microstepping ...
+Quote

Titanium CNC Console - 5 Axis Microstepper

All-in-one industrial CNC control console w/ PC, 19.5" touch screen and 8 A microstepping ...
+Quote

Titanium CNC Console - 6 Axis Microstepper

All-in-one industrial CNC control console w/ PC, 19.5" touch screen and 8 A microstepping ...
Motors
Part Number
Part Name
Description
+Quote

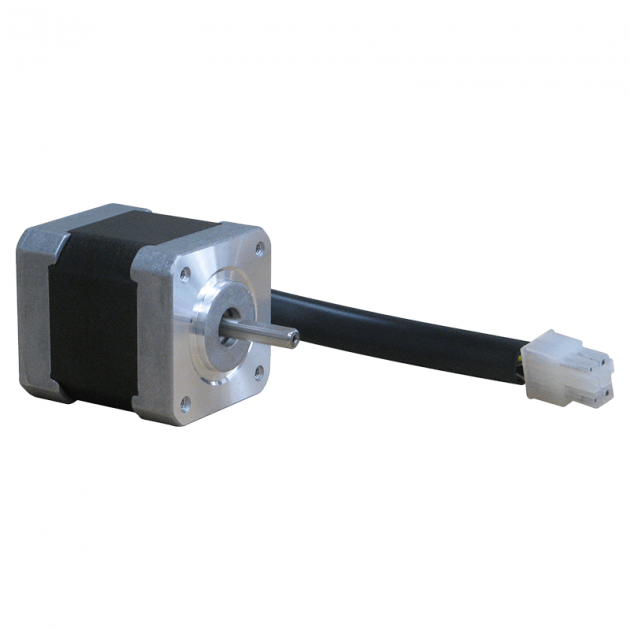

NEMA 17, 62 oz-in Stepper Motor

NEMA 17 High Torque Stepper Motor, Holding Torque, 62 oz-in. 0.25" shaft, Mini Fit Jr. Con...
+Quote

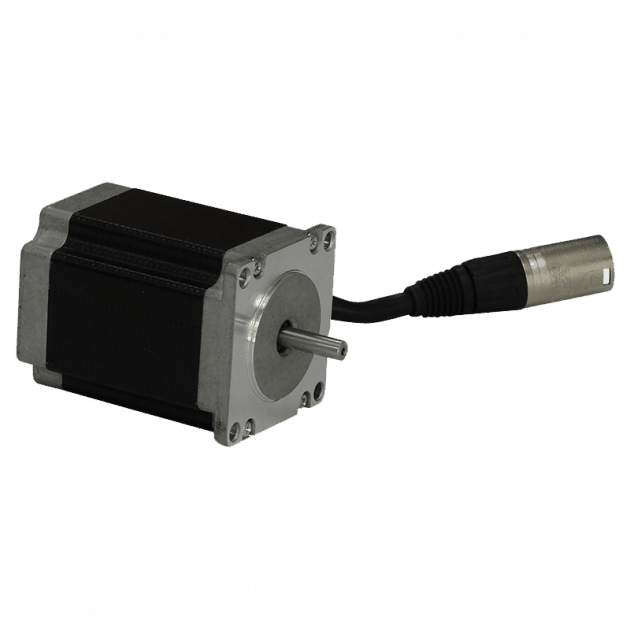

NEMA 23, 155 oz-in Stepper Motor

NEMA 23 High Torque Double Shaft Stepper Motor, Holding Torque , 155 oz-in, 0.25" shaft, M...
+Quote

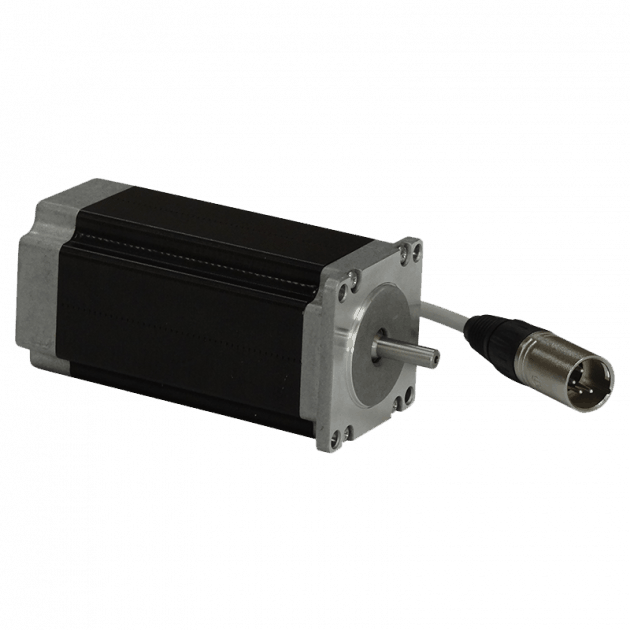

NEMA 23, 320 oz-in Stepper Motor

NEMA 23 High Torque Stepper Motor, Holding Torque, 269 oz-in, XLR connector...
+Quote

NEMA 23, 454 oz-in Stepper Motor

NEMA 23 High Torque Stepper Motor, Holding Torque ,454 oz-in, XLR connector...
+Quote

NEMA 23, 2 Shaft, 454 oz-in Stepper Motor

NEMA 23 High Torque Double Shaft Stepper Motor, Holding Torque ,454 oz-in, XLR connector...
+Quote

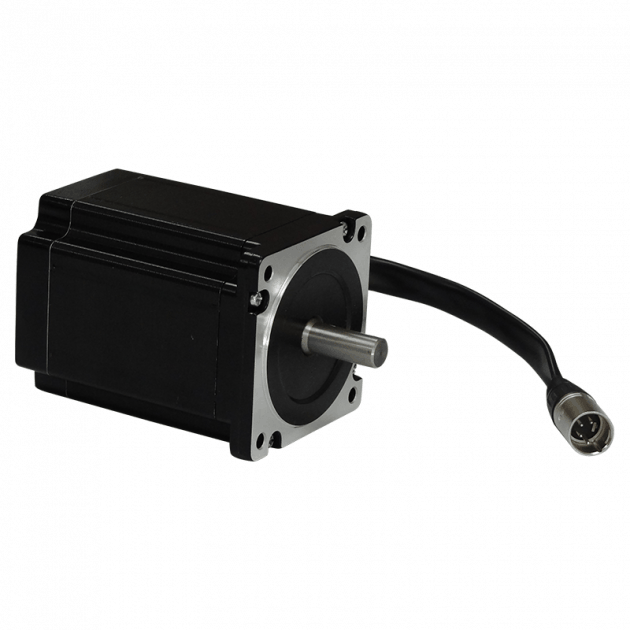

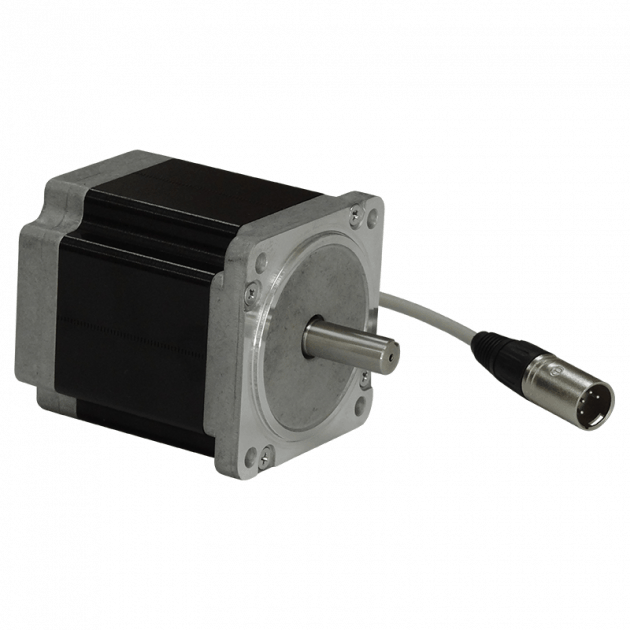

NEMA 34, 940 oz-in Stepper Motor

NEMA 34 High Torque Stepper Motor, Holding Torque , 940 oz-in, XLR connector...
+Quote

NEMA 34, 1316 oz-in Stepper Motor

NEMA 34 High Torque Stepper Motor, Holding Torque, 1161 oz-in, XLR connector...
+Quote

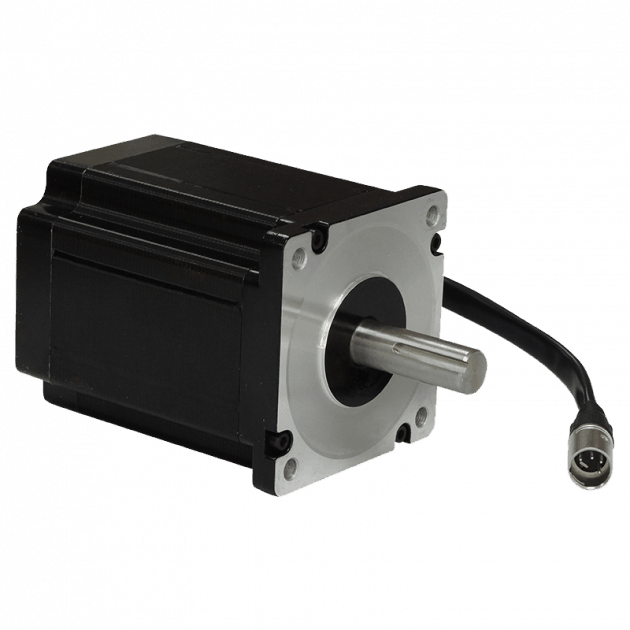

NEMA 42, 2830 oz-in Stepper Motor

NEMA 42 High Torque Stepper Motor, Holding Torque, 2830 oz-in, XLR connector...
Cables
Part Number
Part Name
Description
+Quote

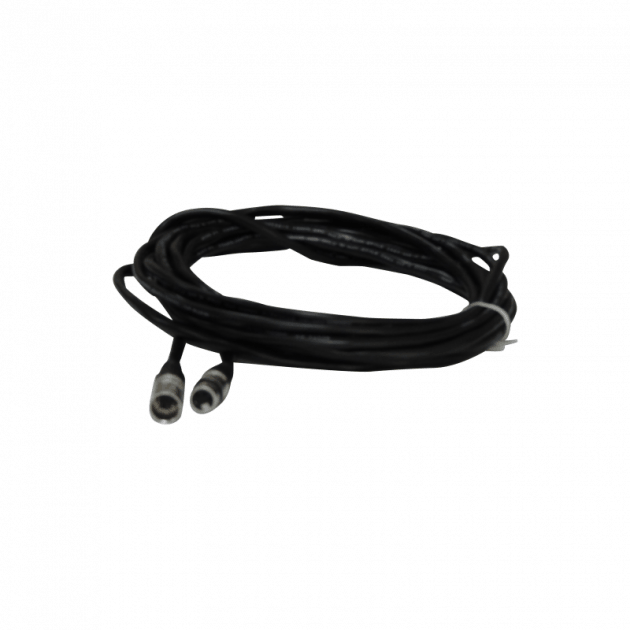

10' Stepper Motor Cable -18 AWG XLR-XLR

10' Stepper Motor Cable with 18 AWG cable with two XLR connectors....
+Quote

15' Stepper Motor Cable -18 AWG XLR-XLR

15' Stepper Motor Cable with 18 AWG cable with two XLR connectors....
+Quote

20' Stepper Motor Cable -18 AWG XLR-XLR

20' Stepper Motor Cable with 18 AWG cable with two XLR connectors....
+Quote

22' Stepper Motor Cable -18 AWG XLR-XLR

22' Stepper Motor Cable with 18 AWG cable with two XLR connectors....
+Quote

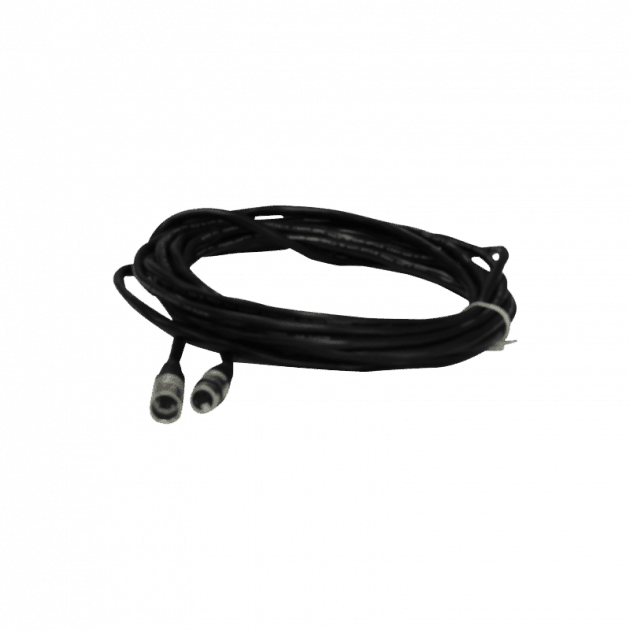

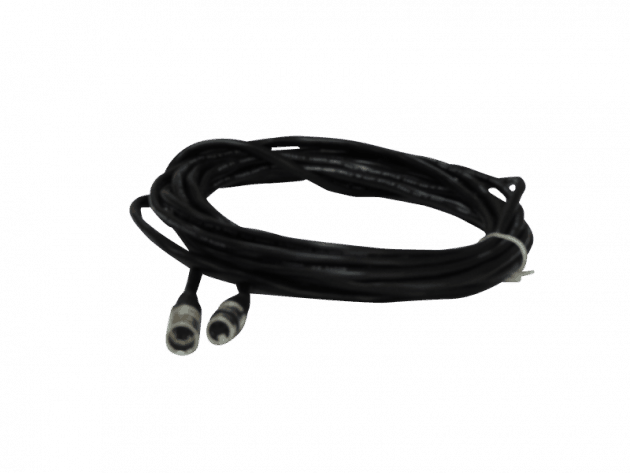

25' Stepper Motor Cable -18 AWG XLR-XLR

25' Stepper Motor Cable with 18 AWG cable with two XLR connectors....
+Quote

30' Stepper Motor Cable -18 AWG XLR-XLR

30' Stepper Motor Cable with 18 AWG cable with two XLR connectors....
+Quote

35' Stepper Motor Cable -18 AWG XLR-XLR

35' Stepper Motor Cable with 18 AWG cable with two XLR connectors....
+Quote

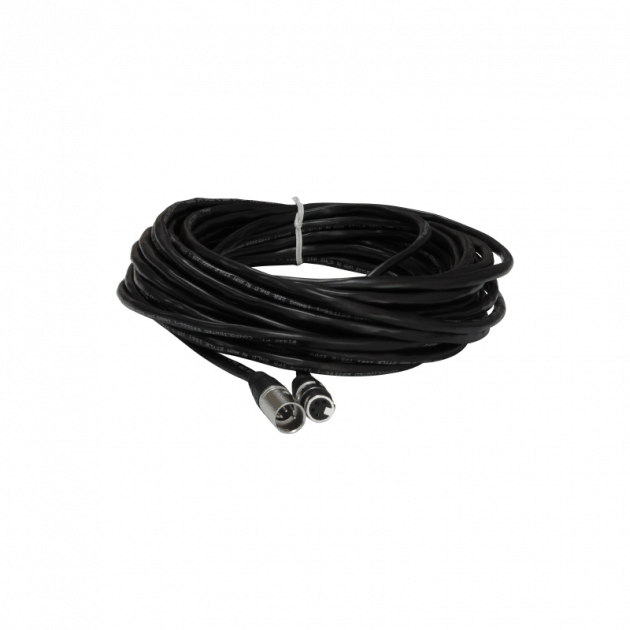

50' Stepper Motor Cable -18 AWG XLR-XLR

50' Stepper Motor Cable with 18 AWG cable with two XLR connectors....
Accessories
Part Number
Part Name
Description
+Quote

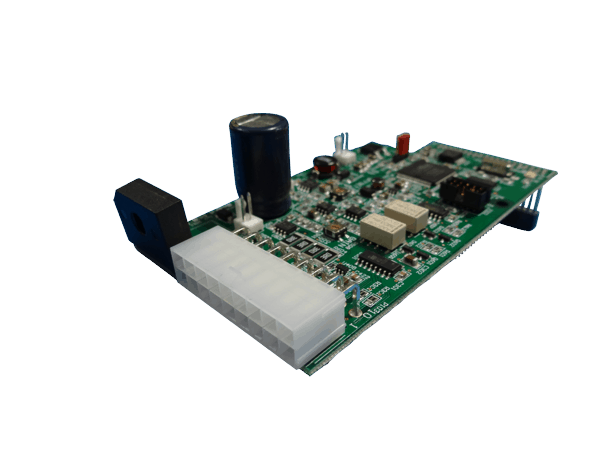

Mini IO Expansion Board

Easily adds 1 analog, 1 PWM & 2 relay outputs, 1 analog & 1 quadrature encoder or ...
+Quote

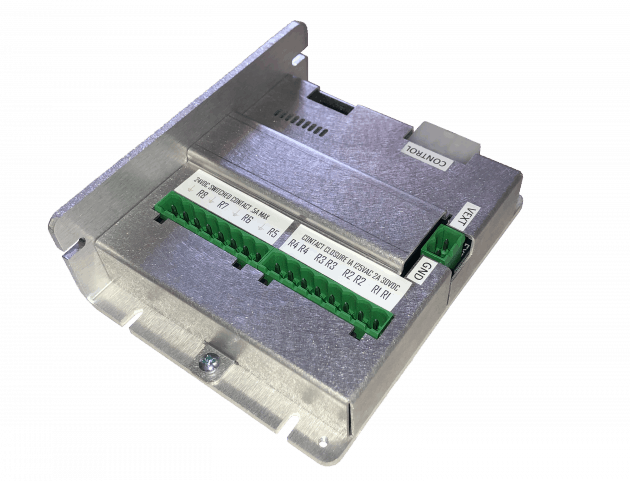

8 Channel Relay Box

8 Channel Relay Board with cable for connection to Signal Generator Board...
+Quote

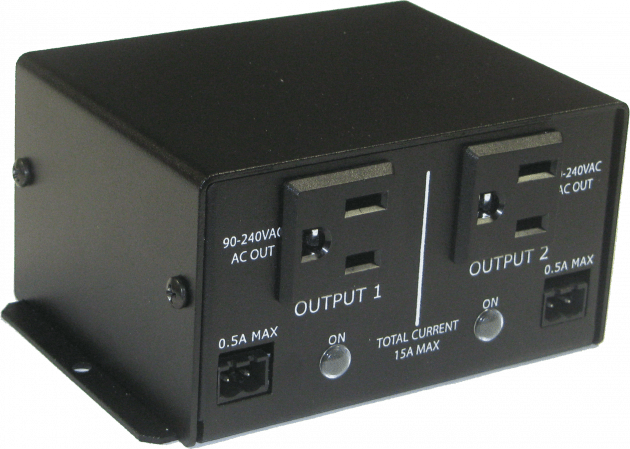

Universal Relay Box

Convenient metal enclosure with 2 switched 110-240 VAC relays and 2 contact relays...
+Quote

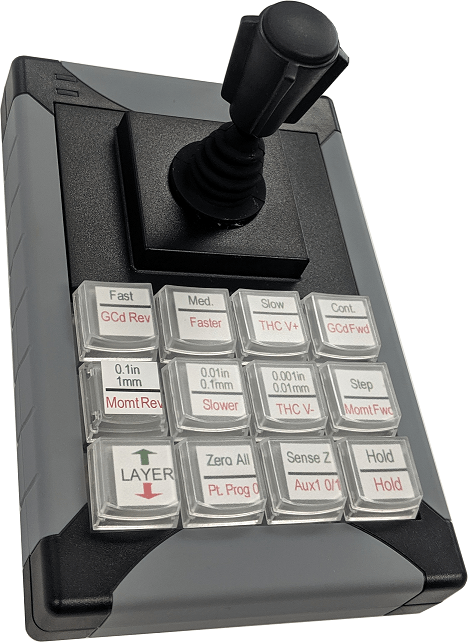

Control Pendant with Joystick

24-function and 8-direction joystick pendant with programmable functions such as jogging a...
+Quote

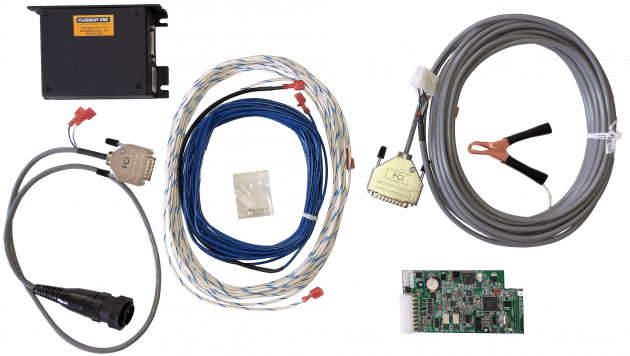

Stingray Plasma Torch Height Control Software and Electronics Package - 35'

Add precision THC to any Flashcut control. Kit includes Software, Isolation Box and 35' Ca...
+Quote

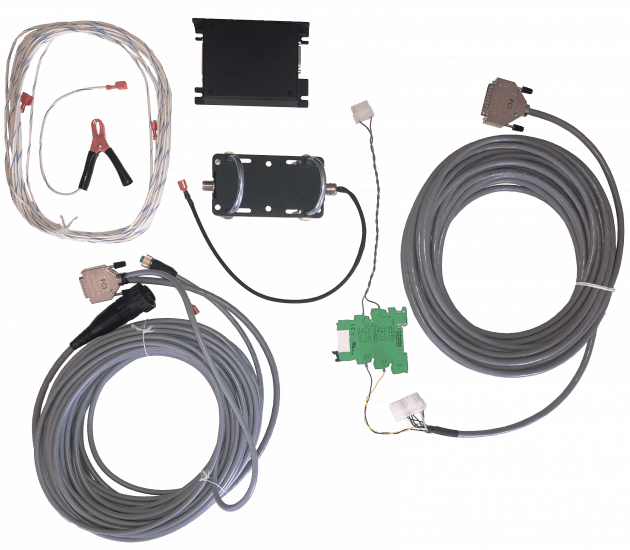

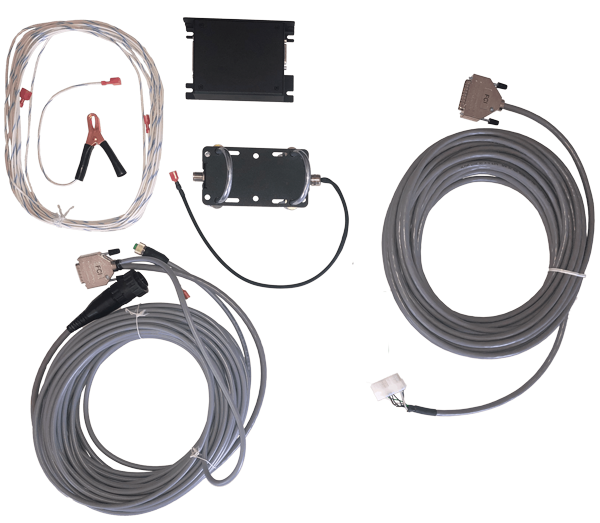

Stingray THC Software and Electronics Package with Ohmic Disconnect Kit, Cables & Mini IO - 25'

Kit includes software, isolation box and 25' Ohmic disconnect cabling for maximum noise is...
+Quote

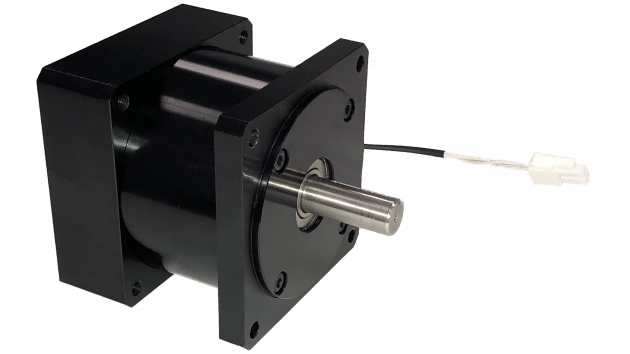

NEMA 34 Brake

Reliable braking device that is designed to specifically interface with our NEMA 34 motors...
+Quote

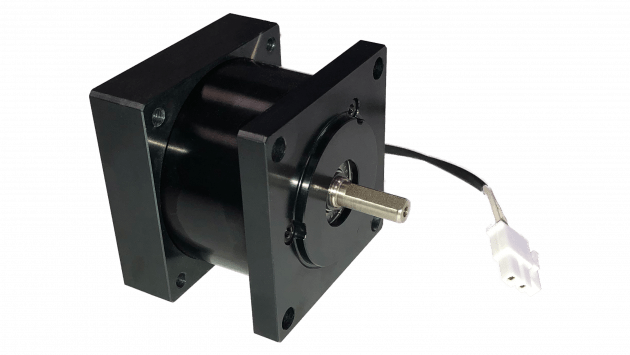

NEMA 23 Brake

Reliable braking device that is designed to specifically interface with our NEMA 23 motors...
+Quote

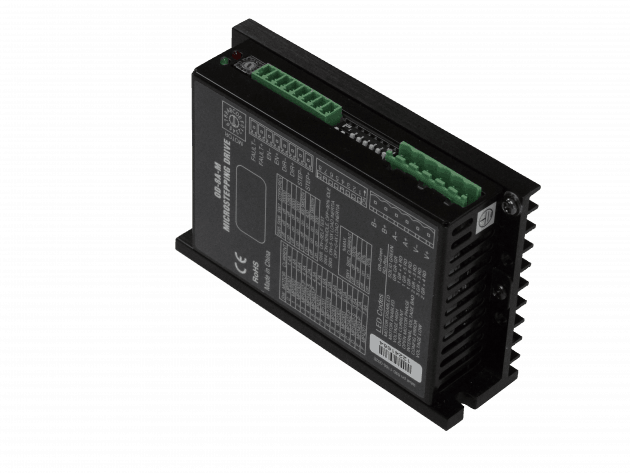

8 amp Microstepping Replacement Drive Board

8 amp Microstepping Replacement Drive Board for the Pro-Series Microstepping CNC Controlle...
+Quote

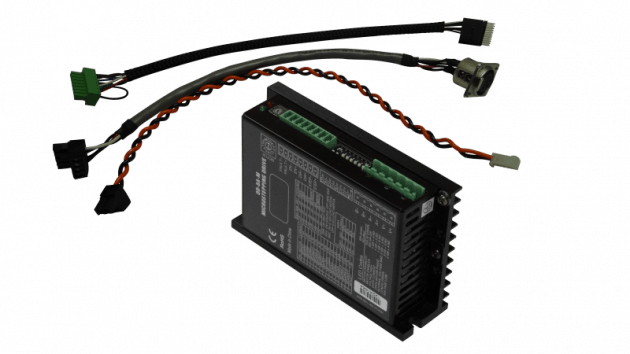

Additional Axis Upgrade Kit for 8 amp Pro-Series Microstepping - XLR

Additional axis drive kit for 8 A Pro-Series Microstepping includes drive and internal cab...
+Quote

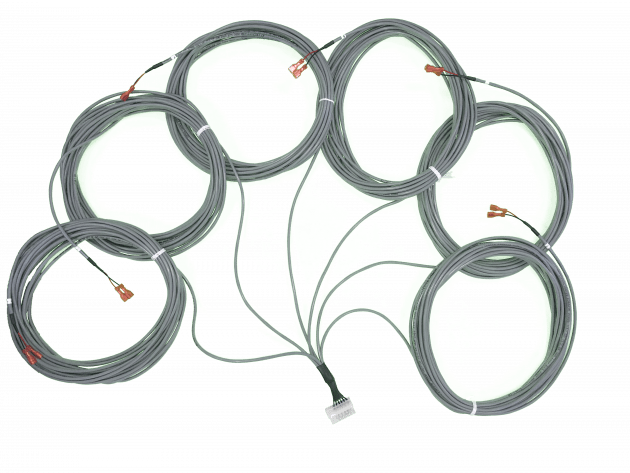

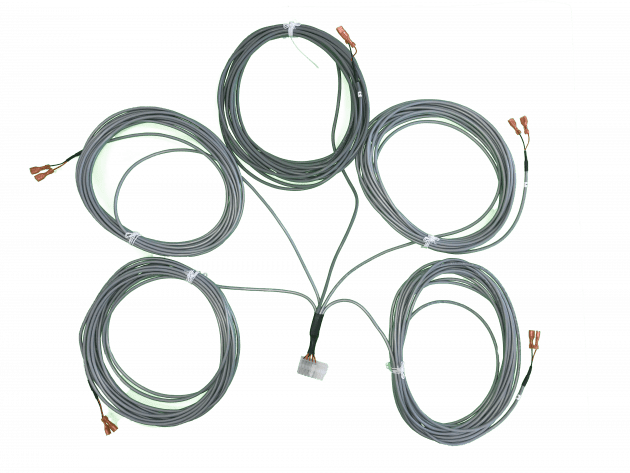

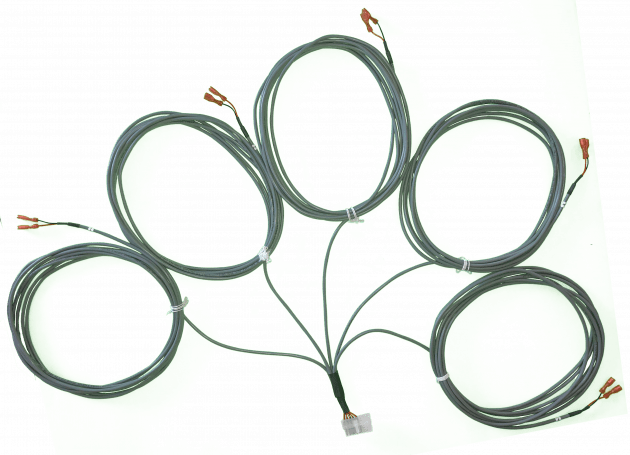

35' 6 Pair Limit switch cable

Plugs directly into input port of FlashCut CNC Controller for easy connection to most inpu...
+Quote

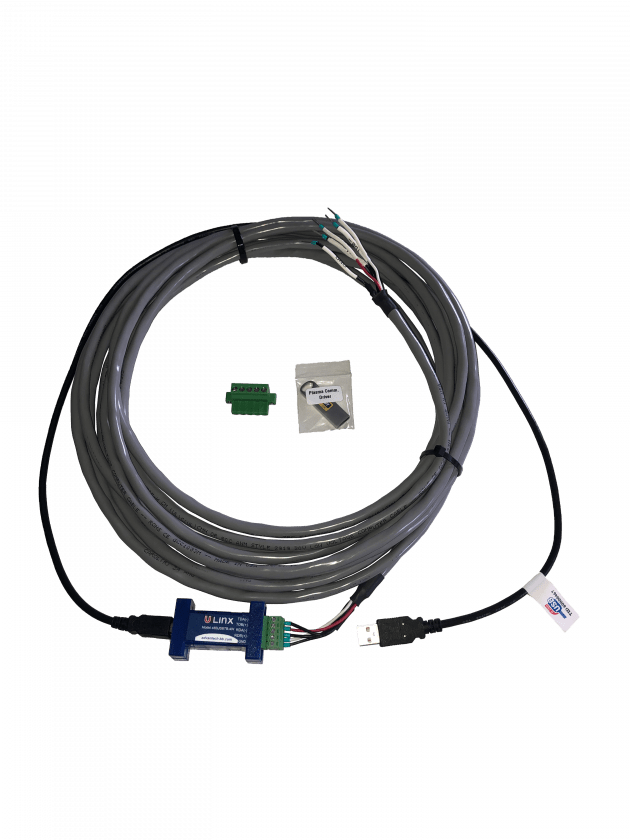

RS-485 Communications with Hypertherm® Powermax® Plasma V10-Add-on

Powermax® Plasma Communications Sfw and Hdw (RS485) w/ Live SYNC Cartridge Usage Reportin...
+Quote

Programmable Pendant Board (A-la-carte feature)

Programmable matrix board that allows you to add up to 144 physical switches to your contr...
Gearboxes
Part Number
Part Name
Description
+Quote

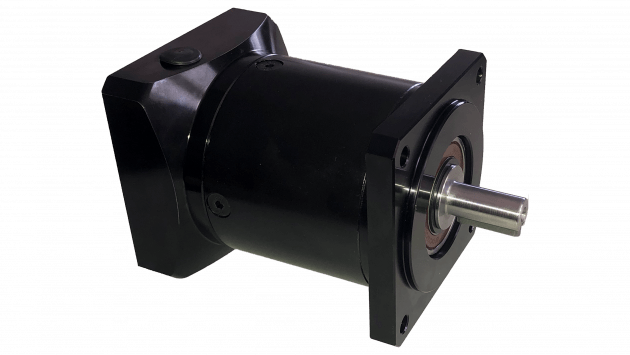

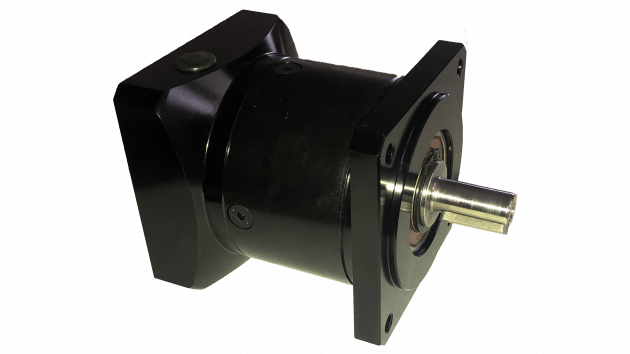

NEMA 34 - Ratio 5:1

Straight 5:1 gearbox with NEMA 34 flange on both sides, 0.5" dia. input and 0.5" dia. outp...
+Quote

NEMA 34 - Ratio 10:1

Straight 10:1 gearbox with NEMA 34 flange on both sides, 0.5" dia input and 0.5" dia. out...
+Quote

NEMA 34 - Ratio 25:1

Straight 25:1 gearbox with NEMA 34 flange on both sides, 0.5" dia. input and 0.5" dia. out...
+Quote

NEMA 34 - Ratio 40:1

Straight 40:1 gearbox with NEMA 34 flange on both sides, 0.5" dia. input and 0.5" dia. out...
