Pro-Series Microstepping

The FlashCut CNC Multi-Axis Pro Series CNC Microstepping Controller provides precise, powerful coordinated motion for controlling any machine, large or small. It was elegantly engineered and built in the USA maintaining high quality and smooth power.  Its 8A drives with anti-resonance technology and 70VDC power supply are perfect for any CNC applications such as a plasma, waterjet, oxyfuel, laser, router, lathe and Bridgeport machines that need excellent smoothness and precision power.  It can be used with any size stepper motor including NEMA 17, 23, 34, 42 and 56.  It is also available in Digital Servo for the even more smoothness, speed and power.

Each Compact and Pro-Series Stepper Controller comes in a sturdy aluminum chassis with an integrated USB Signal Generator, micro stepping drives and a universal 110-240VAC power supply.  All controllers include the acclaimed FlashCut CAD CAM CNC Windows Software giving you the ultimate in ease of use, power and flexibility.  Our software works seamlessly with 64 bit versions of Windows 7, 8 or 10.  We support everything we sell via phone or e-mail.

Featured Applications

Features
Components
  • Compatible with all types of Stepper Motors
  • Current adjustable in all models
  • Available in 2, 3, 4, and 5 axis models for up to 5 axes of simultaneous interpolated movement.
  • Pro Series Micro-stepping Controller
    • Up to 8A of high performance Micro-stepping Control
    • User settable Micro-step levels for smooth, accurate motion
    • Automatic current reduction when motors are at rest
    • Utilizes bipolar chopper technology for top efficiency
    • Anti-resonance technology and inertia matching for the ultimate in smooth micro-stepping control
  • FlashCut CNC Software
  • Integrated Controller and Stepper Drive Box (2, 3, 4 or 5 axis) including:
    • USB Signal Generator Card
    • Stepper Drive Modules
    • Integrated  70 VDC Power supply
    • Motor power and signal plugs
    • Accepts input power of 110-220 VAC, 50 and 60Hz
  • All required cables
  • Free technical support

Product8 Amp Pro-Series Microstepping CNC Controller
Phase Current Range [A]1.0 - 8.0
Bus Voltage [VDC]70
Step ResolutionFull, 1/2, 1/10, 1/25, 1/64, 1/100, *Includes a smooth step option
Idle Current Reduction0.5
Input Voltage110 or 220
General Purpose Digital Output Lines8 Digital (Expandable to 32 Digital, 2 Analog, 2 PWM)
General Purpose Digital In Lines8 Digital (Expandable to 32 Digital, 2 Analog)
Weight [lbs] (kg)14.4 (6.54)
L x W x H [in] (mm)12.7 x 14.1 x 5.75
(315 x 357 x 146.1)
Manual View

Part Number
Part Name
Description
+Quote

2 Axis, 8 Amp Pro-Series Microstepping CNC Controller

+Quote

3 Axis, 8 Amp Pro-Series Microstepping CNC Controller

+Quote

4 Axis, 8 Amp Pro-Series Microstepping CNC Controller

+Quote

5 Axis, 8 Amp Pro-Series Microstepping CNC Controller

+Quote

6 Axis, 8 Amp Pro-Series Microstepping CNC Controller

Part Number
Part Name
Description
+Quote

NEMA 17, 62 oz-in Stepper Motor

+Quote

NEMA 23, 155 oz-in Stepper Motor

+Quote

NEMA 23, 320 oz-in Stepper Motor

+Quote

NEMA 23, 454 oz-in Stepper Motor

+Quote

NEMA 23, 2 Shaft, 454 oz-in Stepper Motor

+Quote

NEMA 34, 940 oz-in Stepper Motor

+Quote

NEMA 34, 1316 oz-in Stepper Motor

+Quote

NEMA 42, 2830 oz-in Stepper Motor

Part Number
Part Name
Description
+Quote

10' Stepper Motor Cable -18 AWG XLR-XLR

+Quote

15' Stepper Motor Cable -18 AWG XLR-XLR

+Quote

20' Stepper Motor Cable -18 AWG XLR-XLR

+Quote

22' Stepper Motor Cable -18 AWG XLR-XLR

+Quote

25' Stepper Motor Cable -18 AWG XLR-XLR

+Quote

30' Stepper Motor Cable -18 AWG XLR-XLR

+Quote

35' Stepper Motor Cable -18 AWG XLR-XLR

+Quote

50' Stepper Motor Cable -18 AWG XLR-XLR

Part Number
Part Name
Description
+Quote

Digital & Analog I/O Expansion Board for USB Signal Generator

+Quote

Mini IO Expansion Board

+Quote

Control Pendant with Joystick

+Quote

8 Channel Relay Box

+Quote

Universal Relay Box

+Quote

Joystick Plus Pendant Board (A-la-carte feature)

+Quote

Programmable Pendant Board (A-la-carte feature)

+Quote

Additional Axis Upgrade Kit for 8 amp Pro-Series Microstepping - XLR

+Quote

8 amp Microstepping Replacement Drive Board

+Quote

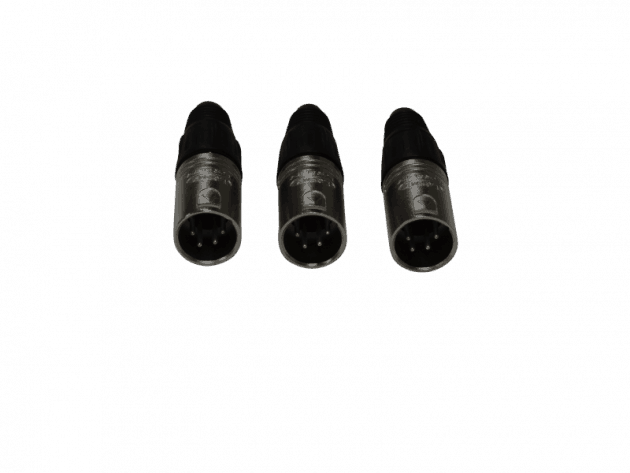

XLR Stepper Motor Connector Kit

+Quote

15' 5 Pair Limit Switch Cable

+Quote

25' 5 Pair Limit switch cable

+Quote

35' 6 Pair Limit switch cable

+Quote

(5) industrial switches

+Quote

I/O Connector Kit for Classic I/O Expansion Board

+Quote

I/O Connector Kit for Mini I/O Expansion Board

Part Number
Part Name
Description
+Quote

NEMA 34 - Ratio 5:1

+Quote

NEMA 34 - Ratio 10:1

+Quote

NEMA 34 - Ratio 25:1

+Quote

NEMA 34 - Ratio 40:1
